Understanding how hydrodynamics and aerodynamics work together in sailing

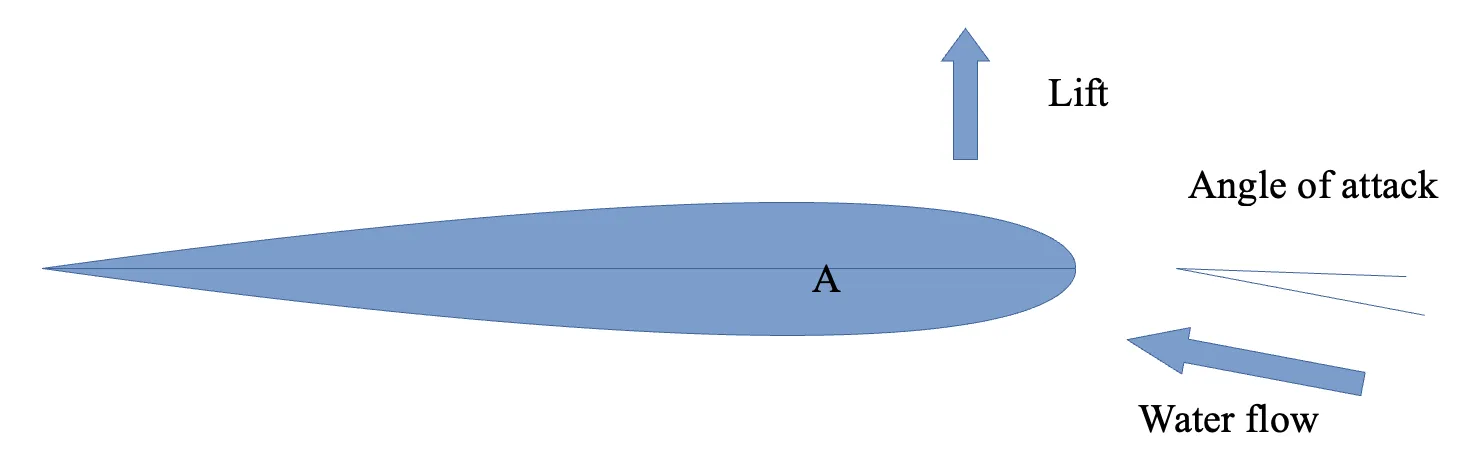

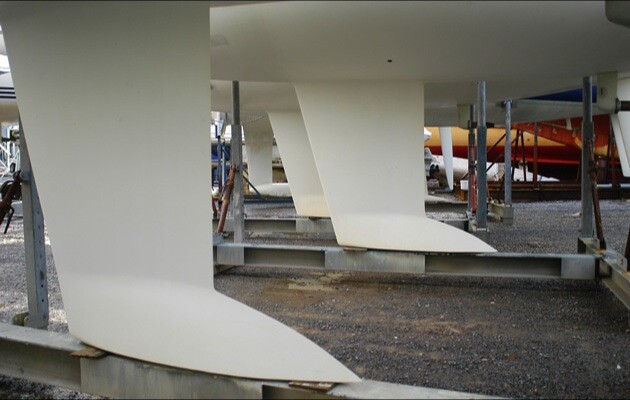

When I first started writing FirstBeat, one of the early pieces was a rapid masterclass on foils. It came out of a conversation with an excellent dinghy sailor who was moving into keelboats. During a long, slow night offshore, we got onto the subject of what actually makes a yacht work, and I explained that one of the quiet miracles of sailing is a symmetrical foil underwater, working at an angle, creating lift. Once you see that, a lot of sailing begins to make more sense. The article is deliberately written in bullet-point form — fast, practical and easy to absorb. At the time, FirstBeat only had a few hundred subscribers, so I’m reposting it now for those who missed it first time round. Foils Masterclass: Keel & Rudder Design in Modern IRC Race Boats Or why leeway is misunderstood and if you read this you will helm better! STUART GREENFIELD APR, 2026 By Stuart Greenfield — RYA Yachtmaster, RORC racer, FirstBeat Coach Most crews talk endlessly about sails, routing, and tactics. Very few truly understand the only parts of the boat that convert all that effort into forward motion : the underwater foils. Your keel and rudder are not just “appendages.” They are highly loaded, asymmetric lifting surfaces operating in a turbulent, moving fluid—often at Reynolds numbers that punish poor setup brutally. If you misunderstand how they work, you will sail further, slower, and less efficiently—every single mile . The Physics: Foils Are Wings (But Harder) A keel generates lift exactly like an aircraft wing—but sideways. • The boat sails at a leeway angle (typically 3–6° upwind) • Water flow meets the keel at an angle of attack • This creates lift to windward , opposing sideways drift • The forward component of that force = your actual VMG Key Insight: Without leeway, there is no lift. Without lift, there is no upwind performance. Poor sailors try to eliminate leeway. Good sailors control it precisely . 3. Leeway: The Most Misunderstood Performance Variable Leeway is not inefficiency—it is the mechanism of efficiency . • Too little → stalled foil → no lift → slipping sideways • Too much → excessive drag → slow boat • Correct → maximum lift-to-drag ratio → fastest VMG What top helmsmen understand: • They “load” the keel progressively • They feel when the foil is just below stall • They steer to maintain attached flow What poor sailors do: • Oversteer → flow separation → drag spike • Pinch → stall → lose speed and height • Ignore feedback → blame sails or tide 4. Keel Design: The Primary Lifting Surface 4.1 Aspect Ratio (Depth vs Chord) High Aspect Ratio (deep, narrow keel): • Higher lift efficiency • Better upwind pointing • – Structurally demanding • – Draft limitations (IRC compromise) Low Aspect Ratio (shallower, wider keel): • Lower draft • More forgiving • Higher induced drag • Less efficient lift IRC reality: Designers are constantly trading rating vs efficiency 4.2 Chord Length Chord = front-to-back length of the foil • Long chord → forgiving, stable, more drag • Short chord → efficient, but stalls more abruptly Practical takeaway: A short-chord keel demands precision helming and trim . A long-chord keel tolerates amateur input. 4.3 Bulb Design The bulb is not just ballast—it is a hydrodynamic body : • Reduces tip vortices • Lowers centre of gravity (COG) • Influences flow onto the keel fin Poor bulb shaping = massive drag penalty 4.4 Foil Section (NACA Profiles) Most modern keels use modified NACA airfoil sections Key characteristics: • Thickness distribution → structural + hydrodynamic balance • Camber → lift characteristics • Leading edge radius → stall behaviour Critical point: A keel is rarely symmetric in practice—loading and heel create effective asymmetry 5. Rudder Design: Control Surface or Second Wing? 5.1 Single Rudder Advantages: • Lower drag in flat sailing • Simpler flow field • Better in light air Disadvantages: • Loses effectiveness at high heel • Prone to ventilation • Requires active trimming to stay immersed 5.2 Twin Rudders (Modern Offshore Standard) Advantages: • One rudder always vertical → optimal lift • Control at high heel angles • Reduced ventilation Disadvantages: • Increased wetted surface drag • Slightly less efficient in light air • More complex alignment/setup 5.3 Rudder as a Lifting Foil A rudder is not just steering—it contributes to side force balance : • Balances the keel’s lift • Controls yaw moment • Influences drag dramatically Poor sailing: Dragging the rudder = brake on permanently Elite sailing: Minimal rudder angle = maximum efficiency 6. Interaction: Keel + Rudder + Hull This is where naval architecture becomes decisive. Centre of Gravity (COG) • Determined by keel weight and placement • Drives righting moment Centre of Effort (COE) • From sails • Moves with trim and sail plan Balance: • If COE too far aft → heavy helm → drag • If too far forward → unstable steering The system: Keel generates lift → rudder balances it → hull connects flow 7. Why So Many Shapes Exist (Especially Under IRC) IRC does not reward absolute speed—it rewards measured efficiency within constraints . Designers juggle: • Draft limits • Stability vs rating • Wetted surface • Righting moment • Construction cost Result: No “perfect keel”—only optimised compromises 8. Limitations of Foils in the Real World Even perfect design fails if conditions change: • Waves distort flow → dynamic stall • Heel alters effective foil geometry • Speed changes Reynolds number → different behaviour • Fouling destroys performance instantly 9. Foil Care: Where Races Are Quietly Won 9.1 Surface Finish • Mirror smooth = lower skin friction • Any roughness = drag increase Even light slime = measurable performance loss 9.2 Leading & Trailing Edges • Leading edge must be fair and true • Trailing edge must be sharp but not fragile Blunt trailing edge = turbulence Over-sharp = damage risk 9.3 Alignment • Rudders must be perfectly aligned • Keel symmetry must be exact A few millimetres error = constant drag + helm load
